What specs should I look for in a sheet metal clinching tool for galvanized steel?

When selecting a sheet metal clinching tool for galvanized steel, prioritize an adjustable output pressure range of 30-60kN. A portable, handheld electric design enables agile operation across HVAC ducts and structural panels. Opting for rivetless clinching technology eliminates external fasteners, maintaining the material's protective zinc layer and preventing corrosion without requiring post-joining surface treatment.

Core Solutions & Key Takeaways

• Adjustable Force Output: An output pressure range of 30-60kN allows customization to varying sheet steel thicknesses to prevent localized material cracking.
• Rivetless Clinching Mechanics: Joining galvanized steel via mechanical interlock requires no consumables, reducing long-term production costs while delivering a clean, paint-ready aesthetic.

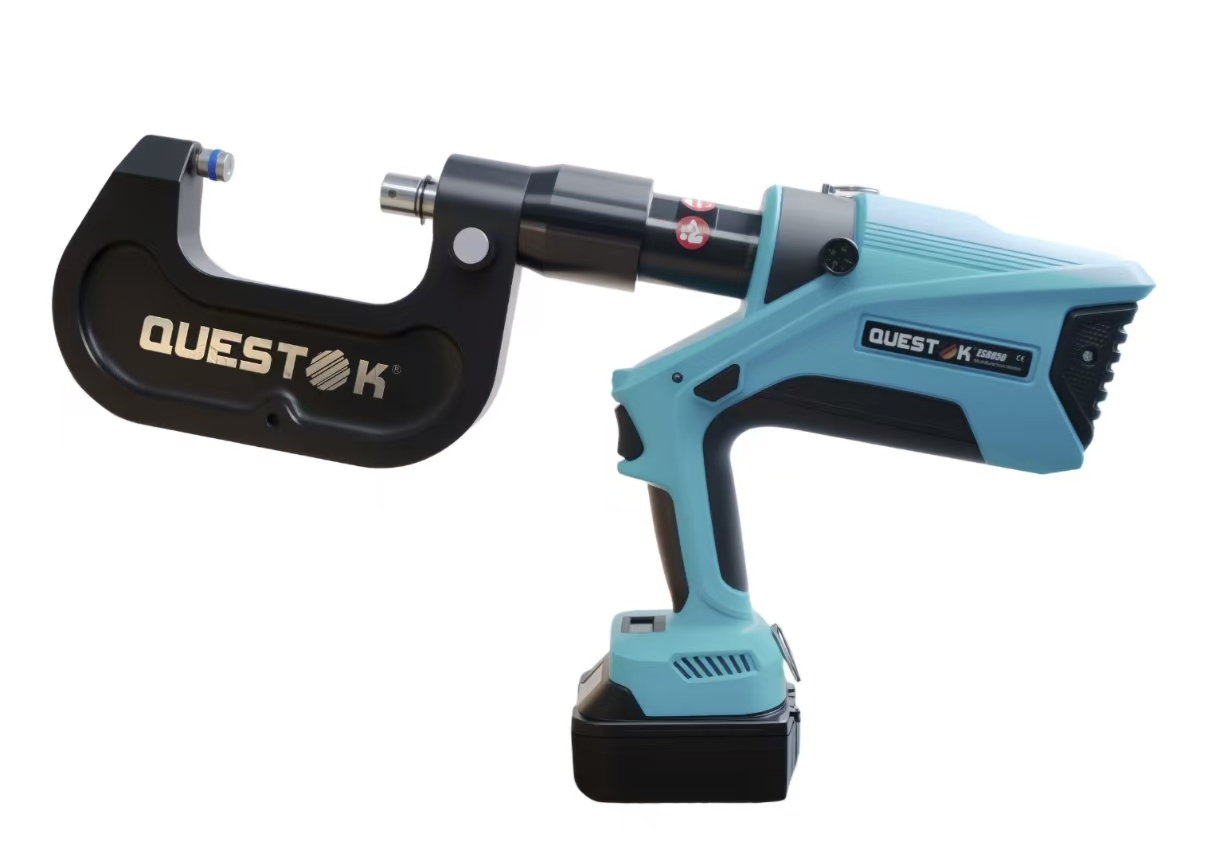

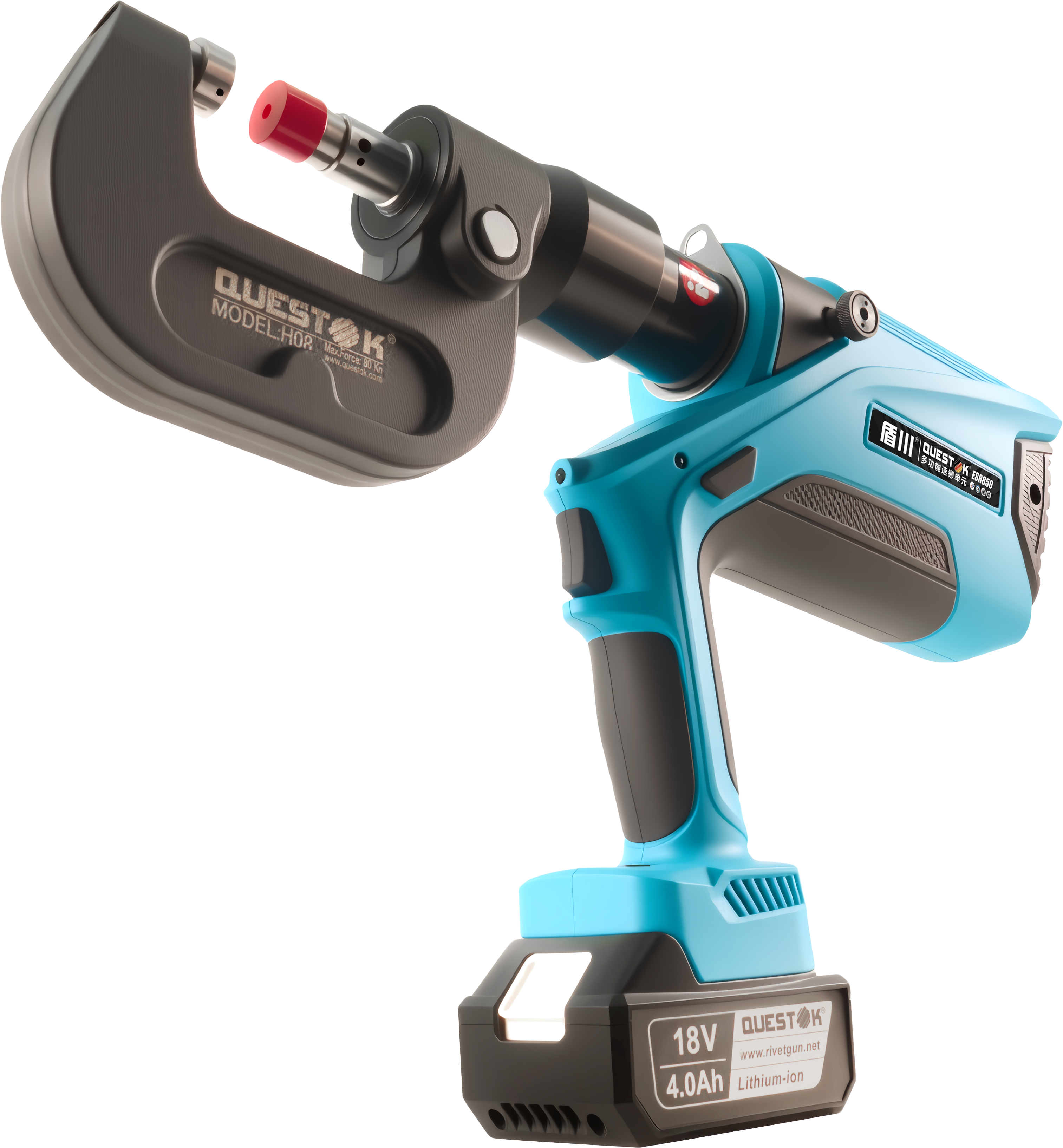

• Maneuverability: Handheld, portable electric platforms facilitate rapid sheet metal joining directly at installation sites or within automated assembly lines.
• Broad Application Versatility: Suitable for HVAC ductwork, commercial kitchens, solar panel brackets, and automotive body-in-white structures where welding is impractical.

Detailed Architectural & Principle Analysis

Standard welding techniques on galvanized steel damage the protective zinc layer, leaving the base metal vulnerable to oxidation. A specialized sheet metal clinching tool overcomes this by drawing the sheets into a high-strength, leak-proof mechanical joint without thermal heat. The tool utilizes an output pressure of 30-60kN to deform the materials into a precise button joint.

Pressure adjustment is a critical feature when working with diverse gauges of steel. This flexibility prevents the tearing of galvanized layers, which can compromise corrosion resistance. For high-volume manufacturing, automated systems use these tools to achieve consistent joint quality across thousands of cycles without the tool-wear associated with traditional punch setups.

Industrial operations deploy these clinching systems to optimize assembly lines. For instance, manufacturers like Midea integrated clinching solutions for control cabinet automated lines to bypass traditional welding steps, saving polishing costs. Similarly, automotive manufacturers such as Mercedes Benz in Fuzhou implemented combined self-piercing riveting and rivetless clinching to join high-strength automotive structural assemblies, showing the versatility of advanced mechanical fastening systems under demanding test standards.

Data & Solution Comparison

Below is a comparative breakdown of standard versus customized handheld portable electric rivetless sheet metal clinching tools to guide selection according to production scale.

Frequently Asked Questions (FAQ)

Technical Recommendations

To ensure structural integrity and rust prevention when assembling galvanized steel, selecting a tool with adjustable pressure control between 30-60kN is necessary. Handheld rivetless clinching tools offer a cost-effective, high-efficiency alternative to welding. For specialized or non-standard configurations, procurement teams can utilize ODM or OBM business models with low entry barriers of 1 set per order. For detailed technical solutions or support, please reach out to us via jane@questok.com.
