What are the key tech specs of a Rectangular clinching gun?

The key technical specifications of a rectangular clinching gun include an output pressure range of 30 to 60 kN, a minimum order quantity of one set, and a 100% full quality inspection standard. Designed for Joining sheet metal without fasteners, it serves critical industrial assembly roles like elevator cabin fabrication.

Core Solutions & Key Takeaways

• Fastener-Free Sheet Metal Joining: Eliminates the need for screws, rivets, or welding consumables, saving production costs and finishing time.

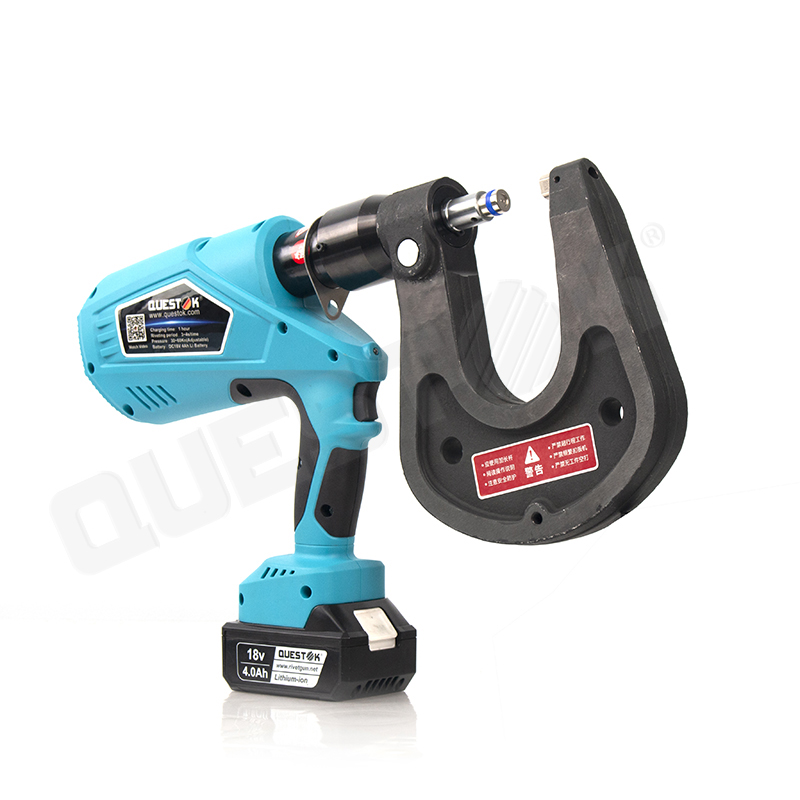

• High-Pressure Operation: Features an output pressure of 30-60 kN to deliver consistent, high-strength rectangular joints.
• Broad Application Range: Ideal for elevator cabins, HVAC ductwork, commercial kitchens, freezers, and automotive assembly lines.
• Certified Performance: Manufactured under strict CE and MSDS compliance standards to ensure long-term operational safety.

Detailed Architectural/Principle Analysis

The rectangular clinching gun operates on a cold-forming press principle, joining two or more sheets of metal through localized plastic deformation. By squeezing the materials between a specialized punch and die, the tool creates a strong mechanical interlock. This process avoids high-temperature welding, preventing thermal deformation, surface discoloration, or damage to zinc and paint coatings on galvanized or pre-painted sheet metals.

As demonstrated by PHOTON TECHNOLOGY KUNSHAN CO.,LTD in various industrial applications, this joining technology is highly efficient. In automated production lines, such as those used by Midea for control cabinets, shifting from traditional spot welding to clinching eliminates the need for post-joint polishing and repainting. Additionally, the process is utilized in demanding environments like BENZ’s Fuzhou production facility, where both self-piercing riveting and rivetless clinching are required to join high-strength materials under strict quality standards. This joining method carries CE certification (Certificate Numbers: ISETC.001120210222 and 3N210218.PTK0S25) and MSDS documentation, ensuring it meets strict safety and environmental regulations in global markets.

Data/Solution Comparison

Frequently Asked Questions (FAQ)

What materials can be joined using a rectangular clinching gun?It is designed for sheet metal joining, specifically steel, galvanized steel, stainless steel, and aluminum alloys. It is widely used in elevator cabins, HVAC ducts, commercial refrigeration, and white goods fabrication.

What are the main advantages of rectangular clinching over spot welding?Clinching is a one-step cold-joining process requiring no consumables, such as rivets or welding wire. It eliminates thermal stress, maintains the integrity of surface coatings, and requires no post-joining polishing or repainting, lowering overall production costs.

How is the quality of each clinching gun verified before shipment?

Each tool undergoes a 100% full inspection process. This includes material checks, process compliance monitoring, and functional load-testing. Test videos and photos are shared with customers to verify performance prior to delivery.

Final Conclusion & Recommendations

The rectangular clinching gun offers a cost-effective, high-efficiency alternative to traditional welding and riveting. Operating within a 30-60 kN pressure range, this tool delivers strong, clean joints with zero consumables, making it highly valuable for industries like elevator cabin manufacturing, automotive pilot builds, and HVAC assembly. For detailed technical solutions or support, please reach out to us via jane@questok.com.

About Us

PHOTON TECHNOLOGY KUNSHAN CO.,LTD, established in 2011, is an industrial technology company dedicated to advancing modern manufacturing through innovative fastening, joining, and assembly solutions. Operating from a 5000 sqm factory with 20-50 employees, the company specializes in battery-powered hydraulic riveting tools, self-piercing riveting (SPR) systems, and clinching equipment. The firm holds CE and MSDS certifications, and has served prominent clients across multiple industries, including NIO, SAIC, Mercedes Benz (Fuzhou), Midea, CATL, and BYD.
